Unpacking the Printer

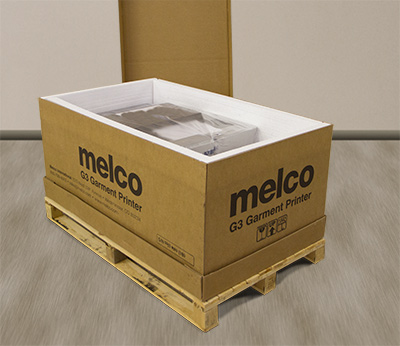

  1. Remove the lid from the box.

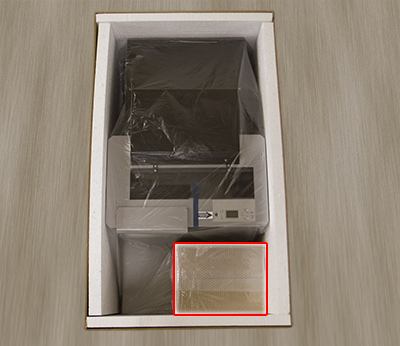

  2. Remove the accessories box.

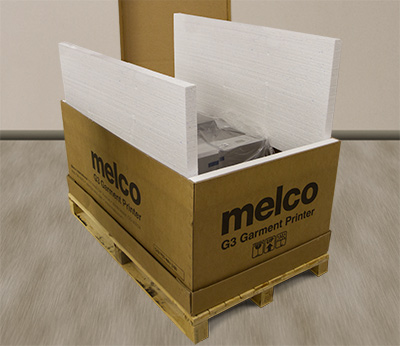

  3. Remove the packing materials from the long sides of the box.

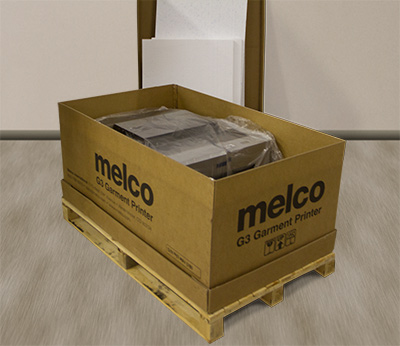

  4. Then remove them from the short sides of the box.

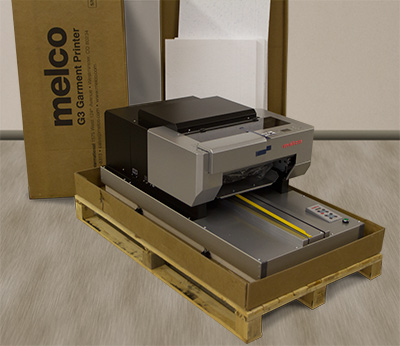

  5. Carefully lift the sides of the box up and away from the printer.
  6. Lift the printer from the shipping base and onto the cart.
    Two people are required for lifting printer.

Do not dispose of the shipping materials. These will be required should the machine need to be shipped back to Melco for any reason.

Two people are required for lifting printer.
