Sleeve Table, 15x34cm

Tools needed for installation:

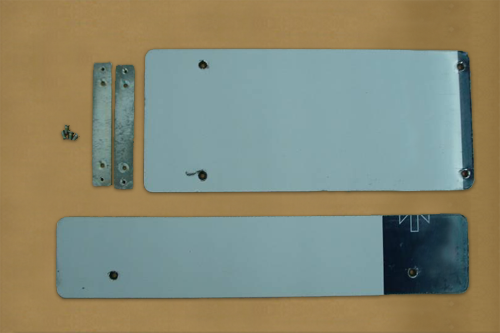

Needed Parts:




Installation Instructions

  1. Remove the Standard Frame Table from the machine.

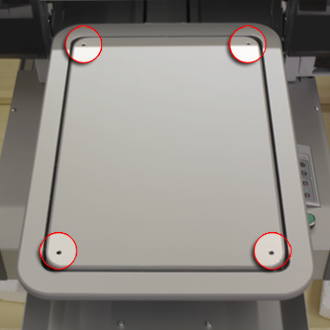

    1. Loosen and remove the hardware – 4 screws – at each corner of the table using the 3mm Metric Hex Driver.standard_table_screws.png
    2. Remove the Standard Frame Table and store it in a secure location.

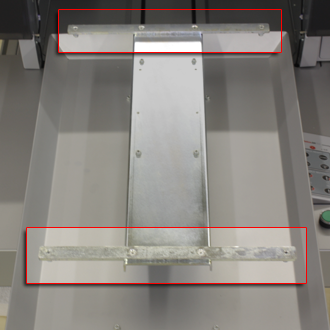

  1. Remove the front Long Table Interface Bracket using the 2.5mm Metric Hex Driver.

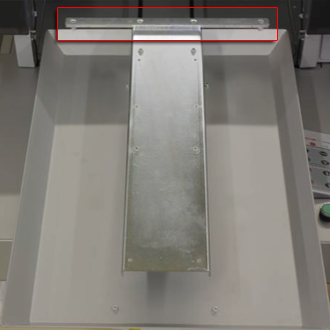

Leave the Rear Table Interface Bracket in place as is.

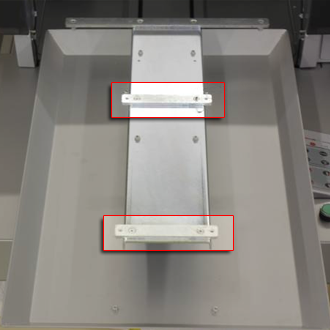

  1. Mount the two (2) Short Table Interface Brackets in the locations shown below using M4 Countersunk Hex Screws.




  1. Align the Sleeve Table and the Adapter Plate as shown in the picture below and secure them to the Table Support using six (6) M4 Countersunk Hex Screws.




When shipped, the tables may be covered in a protective film. This film should be removed before use.

Most of the images in this section show the tables with the protective film.
