Cap Frames & Micro Clamps
Used With the Red Wide Angle Driver
The sections below show different cap frames for use with the red wide angle driver. The appropriate hoop selection for the red wide angle driver is shown below each frame. If the appropriate frame does not show up in the hoop selection list, you will need to customize the hoop list.
The micro or "pocket" clamps follow the cap frames.
You must remove the cap support wings from the red wide angle drive to utilize the CCF or the Micro Clamps.
Selecting Cap Frames in AOS
- Click on the Hoop Selection drop-down to show the available hoop sizes.
- Click on the hoop you want to select. Appropriate choices are shown in the table below. The new hoop will appear in the View Window.
- If using the load design wizard, you will need to click to continue to the next screen with Machine Speed and Acti-feed.

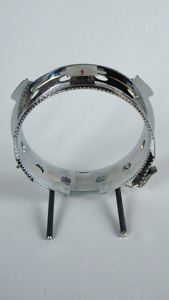

XTS WACF |

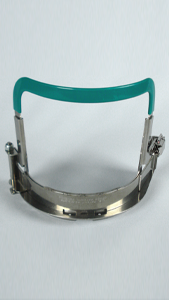

CCF |
In AMAYA OS, select "Red XTS WACF" from the hoop selection drop-down. | In AMAYA OS, select "Red CCF" from the hoop selection drop-down. |
To use the CCF, you must remove the cap support wings from the Red Wide Angle Driver. |
Micro "Pocket" Clamps
- Click on the Hoop Selection drop-down to show the available hoop sizes.
- Click on the hoop you want to select. Appropriate choices are shown in the table below. The new hoop will appear in the View Window.
- If using the load design wizard, you will need to click to continue to the next screen with Machine Speed and Acti-feed.
2.5" x 3.75" Micro Clamp |
3" x 3.75" Micro Clamp |
3.5" x 3.75" Micro Clamp |
In AMAYA OS, select "Red Micro (2.6 x 3.7 in)" from the hoop selection drop-down. | In AMAYA OS, select "Red Micro (3.1 x 3.7 in)" from the hoop selection drop-down. | In AMAYA OS, select "Red Micro (3.6 x 3.7 in)" from the hoop selection drop-down. |
To use the micro clamps, you must remove the cap support wings from the Red Wide Angle Driver. |
