Red Wide Angle Driver Annual Maintenance

Approximately once per year, the red wide angle driver will need to be cleaned and greased. The following steps will walk you through the procedure.

  1. Remove the driver cylinder from the machine and lay it upside down on a flat surface.

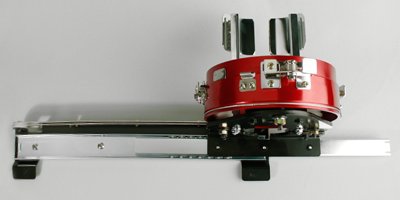

  2. Slide the driver ring fully to one side.

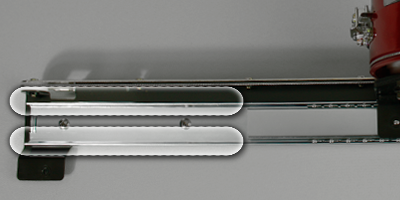

  3. Clean the exposed portion of the exposed slider bearing groove with a clean towel.

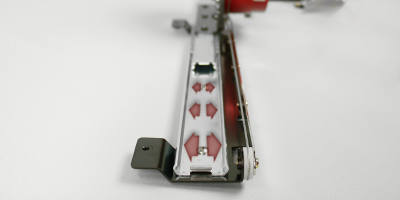

  4. Apply a thin film of lithium multi-purpose grease to the grooves of the slider bearing.

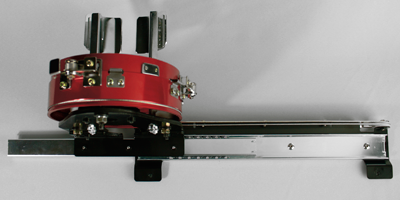

  5. Move the driver all the way to the opposite side and repeat the previous two steps.
  6. Move the driver back and forth a few times to spread the grease.
  7. The driver may now be reinstalled on the machine or stored for future use.
