Grabber Drive Eccentric


The grabber drive eccentric requires lubrication every 20,000,000 revolutions of the z-shaft.

  1. Color change to Needle #1 (press and hold needlecase.gif, then press arrow_left.gif).

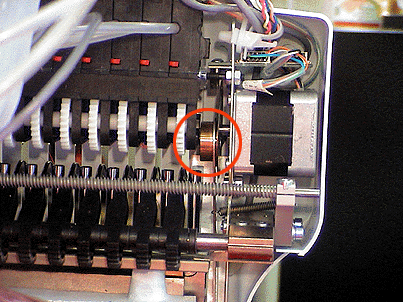

  1. Using the image to the right, locate the grabber drive eccentric on the back of the needle case.

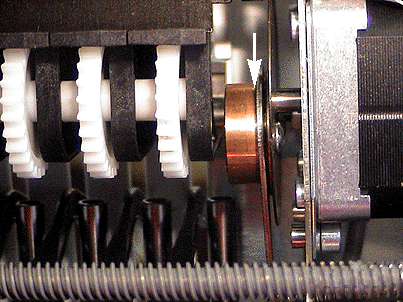

  1. Apply 2 drops of sewing machine oil to the grabber drive eccentric in the location shown in the image to the right.
