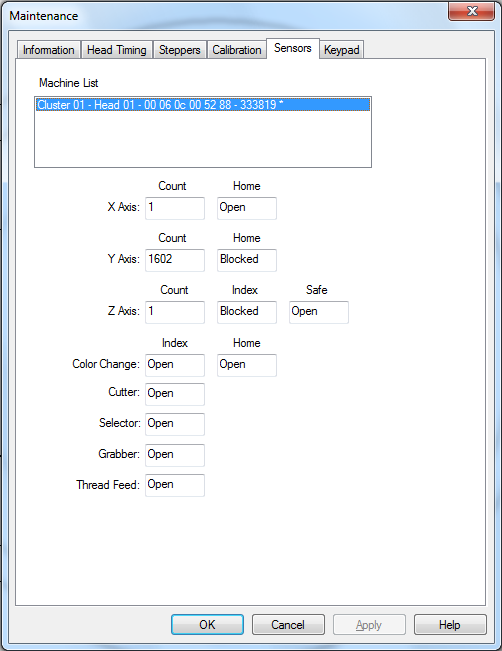

-Provides information on the current rotational position of the X servo motor. This motor is responsible for the left/right (X Axis) motion of the machine carriage.
- Provides information on the current STATE or STATUS of the motor relational to an optical sensor that reports either BLOCKED or OPEN. In addition this status is used by the machine during initialization and hoop center commands.
Blocked = The carriage is left of center
Open = The carriage is right of center
-Provides information on the current rotational position of the Y servo motor. This motor is responsible for the forward/back (Y Axis) motion of the machine carriage.
- Provides information on the current STATE or STATUS of the motor relational to an optical sensor that reports either BLOCKED or OPEN. In addition this status is used by the machine during initialization and hoop center commands
Blocked = The carriage is positioned rear of center
Open = The carriage is positioned forward of center
-Provides information on the current rotational position of the Z servo motor. This motor is responsible for the up/down (Z-Axis) motion of the needle.
-Provides the index pulse needed for machine initialization and is used during sewing operation to coordinate carriage motion with needle motion.
Blocked = 0 - 180 degrees of current Z position
Open = 181 - 359 degress of current Z postiion
- Provides information to the machine related to color change operations.
Blocked = Not at HEADUP
Open = Normal idle state at HEADUP
Blocked = Not on needle center
Open = Machine recognizes that a needle is currently positioned at center (Note: This assume propper needle calibration and should not be used to determine if a needle is correctly centered)
- Provides information on the current STATE or STATUS of the motor relational to an optical sensor that reports either BLOCKED or OPEN.
Blocked = XT - not at home / XTS - Home
Open = XT - Home / XTS - not at Home
- Provides information on the current STATE or STATUS of the motor relational to an optical sensor that reports either BLOCKED or OPEN.
Blocked = XT - not at home / XTS - Home
Open = XT - Home / XTS - not at Home
- Provides information on the current STATE or STATUS of the motor relational to an optical sensor that reports either BLOCKED or OPEN.
Blocked = Not at Home
Open = Home
- Provides information on the current STATE or STATUS of the motor relational to an optical sensor that reports either BLOCKED or OPEN. For additional information see the Technical Manual
